TIRE STUDS
VR
  • Product Details

Zhuzhou Jinxin Studs Co., Ltd. maintains stringent norms of quality to manufacture direct factory carbide dirt bike tire studs with Round carbide tip. direct factory carbide dirt bike tire studs with Round carbide tip starting from the user experience and using strong research and development capabilities, it can effectively solving the pain points of the industry. Zhuzhou Jinxin Studs Co., Ltd. are determined that we will invest more in the improvement of R&D strength and gather more talents in the industry, both of which can make great contributions to the long-term development of our company.

name:direct factory dirt bike tire studs with Round carbide tiptype:flat head shape
apply for:truck/racing/bus/van/lorry/vehicle/tractor car tyresDimension:6mm, 4mm, 6.5mm, 8mm, 9mm, 12mm, 15mm
Hight:5.5mm,5.7mm,6.5mm,9mm,10mm,11mm,12mm,13mm,14m,15mm,16mm,18mmfield:climbing shoes/snow boots/aotomobile tyre/Vehicle tire
weather:winter/snow/snowing/rainingfrozen/frost/freezing/ice/iced/icingcontent 1:Aluminium/Stainless steel/Zinc/Iron/copper/carbide/hard alloy/rubber
suitable car tyre:bike/bicycle/motocycle/scooter/autobike/autocycle tyre, tiressurface:zinc plated


direct factory carbide dirt bike tire studs with Round carbide tip



Professional manufacture for snow studs, tyre studded scews, antiskid boots nails:

New type snow screw car tire studded pin, easy to install and remove without assembling tools. using in different season, after winter weather can take them off for next turning. Choosing the screw studs only to based on depth of your tire thread.





For your reference:

GRADE

Co

Hc

Den

RS

HV30

GRAIN SIZE

JX019

7.5-9.0

11.0-14.0

12.68-12.78

50-90

1400-1600

1.2-1.6

JX021

8.2-10.0

10.0-12.0

12.10-12.20

50-90

1400-1600

1.6-2.0

JX025

9.0-11.0

10.2-11.2

12.77-12.87

87-97

1380-1480

1.6-2.0



1. studs pin

Content: WC, Co
Density (g/cm3):10.0-14.0
HAR:>1380 HV30
TRS (N/MM2):1660
Porosity (ISO):<A02B02
Free carbon and graphite phase: <C00
Metallurgical: A04B02C02E00
Grain size (um):1.2-2.0
Wear indicators: 71±7.5
Pin color: black



2. studs set

Material: Low carbon steel, Aluminum, stainless steel, rubber, Iron
surface processing:  Zinc plated  (no surface cracks, corrosion, and no separation of the zinc coating)

Set color: yellow, golden, green, black, bronze

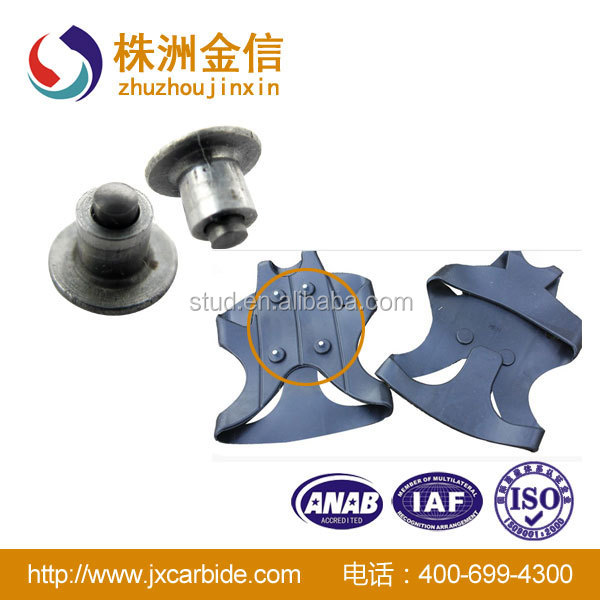

Here are real picture showing:












Some hot sale model for your reference:



screw studs
moderlS (mm)H (mm)D (mm)d (mm)
JX4*4-H9493.52.3
JX4*4-H124123.52.3
JX6*6-H156155.83.2
JX6*6-H186185.83.2
JX6*6-H18R6185.83.2
JX6*6-H256255.83.2
model in red color means: do not have in stock now, need lead time if you want to order

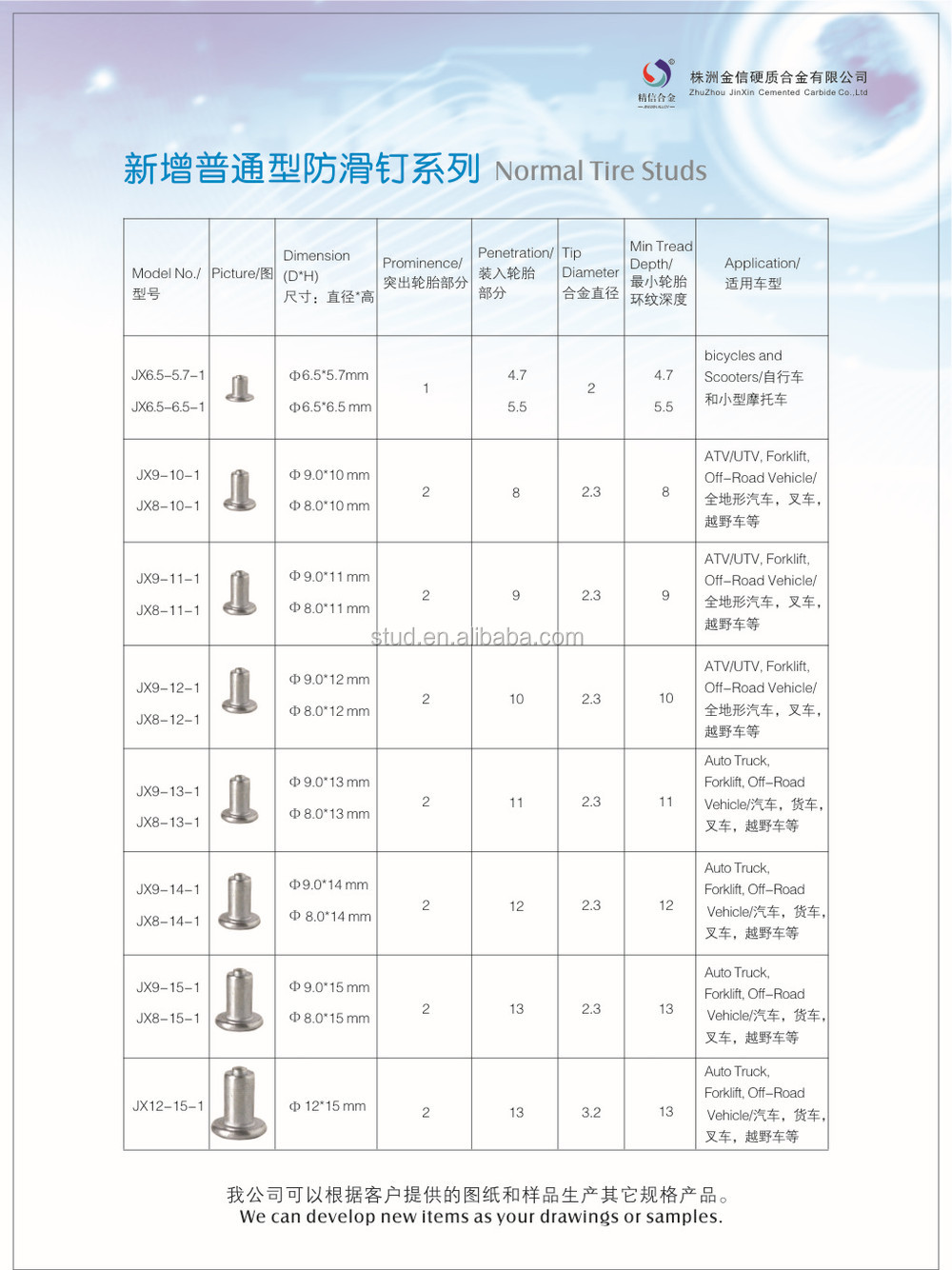

Flat head studs
modelS (mm)H (mm)D (mm)d (mm)
JX6.5-5.5-16.55.53.72
JX6.5-5.7-16.55.73.72
JX6.5-6.5-26.56.53.72
JX8.0-10-181052.3
JX8.0-11-181152.3
JX8.0-12-181252.3
JX8.0-13-181352.3
JX9.0-10-191052.3
JX9.0-11-191152.3
JX9.0-12-191252.3
JX9.0-13-191352.3
JX9.0-14-191452.3
JX9.0-15-191552.3
JX9.0-16-191652.3
JX10-7-110752.3
JX12-14-1121473.2
JX12-15-1121573.2
JX12-16-1121673.2
JX12-17-1121773.2
JX8.0-10-28106.42.3
JX8.0-11-28116.42.3
JX8.0-12-28126.42.3
JX8.0-13-28136.42.3


Application



Installation Method



We try our best price to supply best service in each procedure for all the customer:



Packaging & Shipping

DHL/Fedex/UPS/EMS Express will be used to deliver this packages for sample. Large and heavy item will take Ocean transport.

1. We will send the goods within 7-15 business days after the full payment
has been confirmed and your will get a tracking number to follow the package;
2. We use anti-shock packing with inner protection and international shipping wooden case to ensure a brand new and fantastic projector on your hand;
3. Package normally arrives in 3-5 working days from our factory; By see, will depends.
4. When u receive the parcel, open and using immediately because we tested and detected each of them very clearly before shipping;

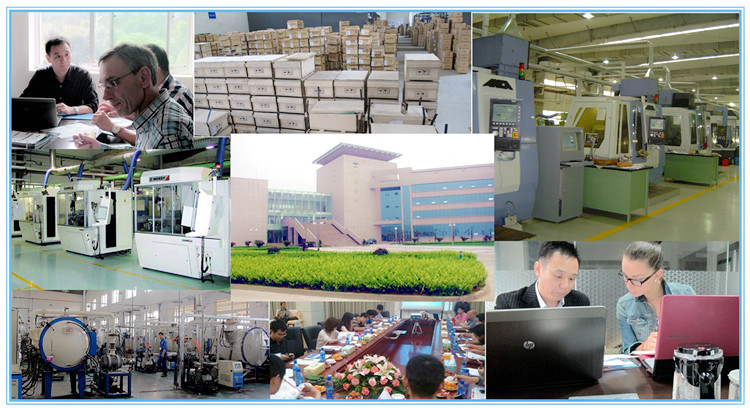

Company Information

About Jinxin:



Company profile:

Zhuzhou Jinxin Cemented Carbide Co., limited- years of operating experience for cemented carbide, with independent import and export rights and business cooperation with 36 countries around the world, we are praised to be affirming in our quality, service, Honesty and reputation by customers around the world, as we have a strong professional, dedicated and integrity sales and service team.

Zhuzhou Jinxin has passed ISO9001: 2008 quality system certification, with independent import and export rights, as well as a number of Chinese patents.

Zhuzhou Jinxin depend on the idea "skilled workers, great credit," try out best to help you build a world-know brand with service concept, high quality, excellent service

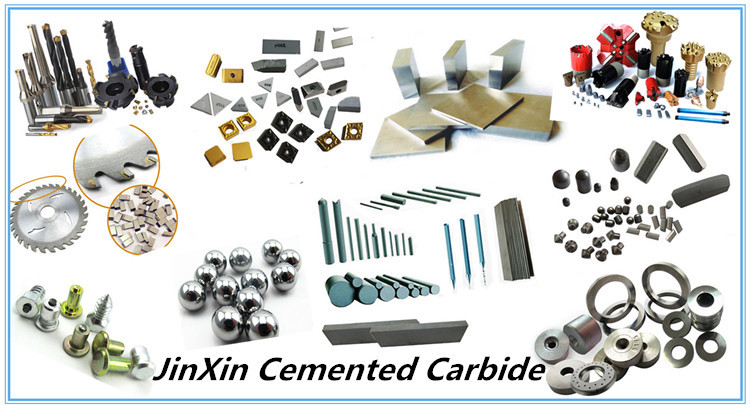

We are deal with all the cemented carbide products.

Carbide Division:Specializing in the production of carbide ball tooth, brazing sheet, drawing dies, roll rings, cold heading die, mining alloy, shield blades, litchi surface carbide blade, saw tips, woodworking blades, alloy milling insert tools, carbide plates, carbide rods, carbide dies, tungsten steel mold, shaped alloy (non-standard carbide).

NC Tool Division:professional production of carbide inserts, CNC blade, CNC tool.

Precision Processing Division: specializes in precision carbide tooling, wear-resistant parts, valves, valve seats, seal rings and other non-standard shaped products deep processing.

Mineral DRILLING Tools Division: professional production of button tips, drill bits, DTH bits, eccentric drill, tube drill bit, oil drill bits, PDC drill, hammer, etc.

Tire studs Division:Professional design, production of various types of tire studs for motorcycle, racing, cars, outdoor shoes, etc.

Tungsten and molybdenum can hardly contain metal products business: production of tungsten crucible (Kyropoulos), molybdenum crucible (heat exchange method), tungsten heater, tungsten insulated pipes, tungsten / molybdenum plates, molybdenum reflective screen, tungsten / molybdenum supporting parts, tungsten / molybdenum cover and stainless steel matching sheet.



Our Services

1.We provide quality promise worldwide for any part of the tungsten carbide products ( best equipment + accurate machine checking and test ).

2.We provide reparing service with low cost for any machine over the warranty period.
3.We provide 24 hours pre&after sail service for any customer,pls contact our email and
Aliwangwang to get the immediate response.
4.We provide OEM service for business channel or educational institution.



FAQ

1. Are you manufacturer?

A: Yes,we are. We have our own patent technology.
2. Do you accept OEM?
A: Yes and we are doing OEM for many famous brand in the market.

3. How long should I wait to get the machine after payment?
A: We will send out machines in no more than 5 days by courier.





If any question or others I can help, feel free to consult! I am here always for dear you : ))





Kitty Fu

Zhuzhou Jinxin Cemented Carbide Co. Ltd

Add.: World Trade Plaza, No.628 Xinhua West Road, Zhuzhou City, Hunan Province, China

Tel.: 86-731-22196266

Mobile: 86-18975305800

Fax: 86-731-22332243-8009

Skype: ojinxin-016
