15 years of focus on high-quality tire studs research, China's largest tire studs manufacturer.
：sales06@jxcarbide.com
：+8618073319589
Our employees are well trained to be skilled at applying tecnology to the product manufacturing process.It has been continually proved that it can be widely used in the application field(s) of JX12-17-1 Carbide Road grip tire studs snow truck tire studs.
Having absorbed the best and the brightest to join us, Zhuzhou Jinxin Studs Co., Ltd. finds it easier and more efficient to develop products on a regular basis.JX12-17-1 Carbide Road grip tire studs snow truck tire studs is the newest result combining all the efforts and wisdom of our employees. In order to guarantee JX12-17-1 Carbide Road grip tire studs snow truck tire studs performance, the adopted technologies are technically useful and feasible. Depending on its properties, the product is widely applied in the field(s) of Other Wheels,Tires and Accessories. In this technology-driven society, 2014 focus on improving R&D strength and keep developing new technologies so as to increase our competitiveness in the industry. We aim to become one of the leading enterprises in the market.
| Type: | SOLID TIRE, SOLID TIRE | Place of Origin: | Hunan, China |
| Brand Name: | JINXIN | Diameter: | 11-15inch |
| Car Make: | bike, moto | Tire Design: | Radial |
| Model Number: | JX12-16-1 | name: | JX12-17-1 Carbide Road grip tire studs snow truck tire studs |
| type: | ONE STEP/TWO STEPS/SEVERAL STEPS | apply for: | truck/racing/bus/van/lorry/vehicle/tractor car tyres |
| Dimension: | 6mm, 4mm, 6.5mm, 8mm, 9mm, 12mm, 15mm | Hight: | 5.5mm,5.7mm,6.5mm,9mm,10mm,11mm,12mm,13mm,14m,15mm,16mm,18mm |
JX12-17-1 Carbide Road grip tire studs snow truck tire studs
Advantages:
--good anti-slip effect
--super grip ability
--easily installed & removed
-- recycling use
-- sizes & types are available
--good wear resistance
--strict tolerance controlled
--100% virgin raw material
--zinc plated for rust protection
--directly factory sale with good price
--short and on time delivery
--all the specifications can be used in cars
--samples will be given upon the inquiry
Professional manufacture for snow studs, tyre studded scews, antiskid boots nails:

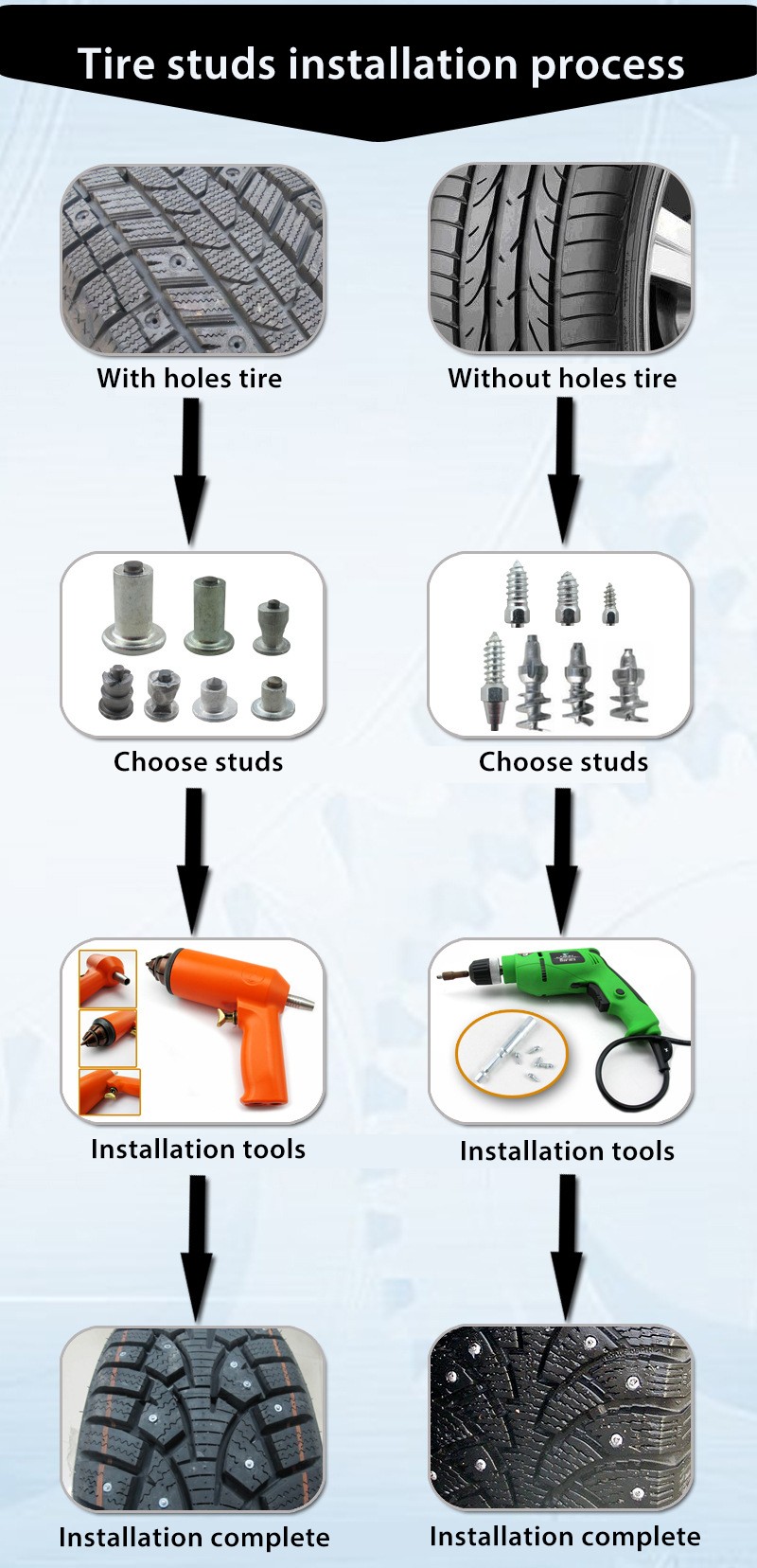

New type snow screw car tire studded pin, easy to install and remove without assembling tools. using in different season, after winter weather can take them off for next turning. Choosing the screw studs only to based on depth of your tire thread.
For your reference:
GRADE | Co | Hc | Den | RS | HV30 | GRAIN SIZE |
JX019 | 7.5-9.0 | 11.0-14.0 | 12.68-12.78 | 50-90 | 1400-1600 | 1.2-1.6 |
JX021 | 8.2-10.0 | 10.0-12.0 | 12.10-12.20 | 50-90 | 1400-1600 | 1.6-2.0 |
JX025 | 9.0-11.0 | 10.2-11.2 | 12.77-12.87 | 87-97 | 1380-1480 | 1.6-2.0 |
2. studs pin
Content: WC, Co
Density (g/cm3):10.0-14.0
HAR:>1380 HV30
TRS (N/MM2):1660
Porosity (ISO):<A02B02
Free carbon and graphite phase: <C00
Metallurgical: A04B02C02E00
Grain size (um):1.2-2.0
Wear indicators: 71±7.5
Pin color: black
2. studs set
Material: Low carbon steel, Aluminum, stainless steel, rubber, Iron
surface processing: Zinc plated (no surface cracks, corrosion, and no separation of the zinc coating)
Set color: yellow, golden, green, black, bronze

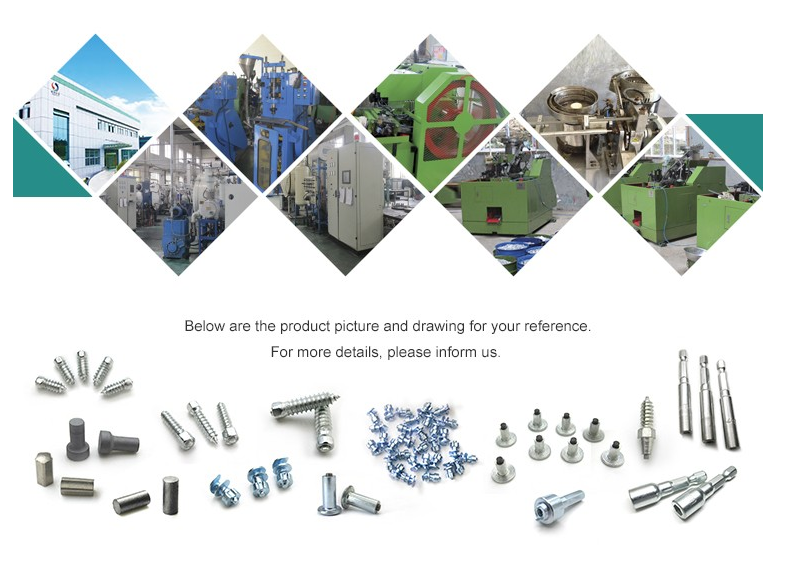

Some hot sale model for your reference
| screw studs | ||||
| moderl | S (mm) | H (mm) | D (mm) | d (mm) |
| JX4*4-H9 | 4 | 9 | 3.5 | 2.3 |
| JX4*4-H12 | 4 | 12 | 3.5 | 2.3 |
| JX6*6-H15 | 6 | 15 | 5.8 | 3.2 |
| JX6*6-H18 | 6 | 18 | 5.8 | 3.2 |
| JX6*6-H18R | 6 | 18 | 5.8 | 3.2 |
| JX6*6-H25 | 6 | 25 | 5.8 | 3.2 |
| model in red color means: do not have in stock now, need lead time if you want to order | ||||
| Flat head studs | ||||
| model | S (mm) | H (mm) | D (mm) | d (mm) |
| JX6.5-5.5-1 | 6.5 | 5.5 | 3.7 | 2 |
| JX6.5-5.7-1 | 6.5 | 5.7 | 3.7 | 2 |
| JX6.5-6.5-2 | 6.5 | 6.5 | 3.7 | 2 |
| JX8.0-10-1 | 8 | 10 | 5 | 2.3 |
| JX8.0-11-1 | 8 | 11 | 5 | 2.3 |
| JX8.0-12-1 | 8 | 12 | 5 | 2.3 |
| JX8.0-13-1 | 8 | 13 | 5 | 2.3 |
| JX9.0-10-1 | 9 | 10 | 5 | 2.3 |
| JX9.0-11-1 | 9 | 11 | 5 | 2.3 |
| JX9.0-12-1 | 9 | 12 | 5 | 2.3 |
| JX9.0-13-1 | 9 | 13 | 5 | 2.3 |
| JX9.0-14-1 | 9 | 14 | 5 | 2.3 |
| JX9.0-15-1 | 9 | 15 | 5 | 2.3 |
| JX9.0-16-1 | 9 | 16 | 5 | 2.3 |
| JX10-7-1 | 10 | 7 | 5 | 2.3 |
| JX12-14-1 | 12 | 14 | 7 | 3.2 |
| JX12-15-1 | 12 | 15 | 7 | 3.2 |
| JX12-16-1 | 12 | 16 | 7 | 3.2 |
| JX12-17-1 | 12 | 17 | 7 | 3.2 |
| JX8.0-10-2 | 8 | 10 | 6.4 | 2.3 |
| JX8.0-11-2 | 8 | 11 | 6.4 | 2.3 |
| JX8.0-12-2 | 8 | 12 | 6.4 | 2.3 |
| JX8.0-13-2 | 8 | 13 | 6.4 | 2.3 |
Application
Packaging & Shipping
DHL/Fedex/UPS/EMS Express will be used to deliver this packages for sample. Large and heavy item will take Ocean transport.
1. We will send the goods within 7-15 business days after the full payment
has been confirmed and your will get a tracking number to follow the package;
2. We use anti-shock packing with inner protection and international shipping wooden case to ensure a brand new and fantastic projector on your hand;
3. Package normally arrives in 3-5 working days from our factory; By see, will depends.
4. When u receive the parcel, open and using immediately because we tested and detected each of them very clearly before shipping;
Company Information
Our Services
1.We provide quality promise worldwide for any part of the tungsten carbide products ( best equipment + accurate machine checking and test ).
2.We provide reparing service with low cost for any machine over the warranty period.
3.We provide 24 hours pre&after sail service for any customer,pls contact our email and
Aliwangwang to get the immediate response.
4.We provide OEM service for business channel or educational institution.
FAQ
1. Are you manufacturer?
A: Yes,we are. We have our own patent technology.
2. Do you accept OEM?
A: Yes and we are doing OEM for many famous brand in the market.
3. How long should I wait to get the machine after payment?
A: We will send out machines in no more than 5 days by courier.
If any question or others I can help, feel free to consult! I am here always for dear you : ))
Gisselle Gan
Mobile:0086-15873358163
Whats up No.+86 15873358163
Skype: jxcarbidewendy
Add.: No.28 Xinhua Road, Zhuzhou City, Hunan Province, China
Fax: 0086-0731-22332243
Zhuzhou Jinxin Studs Co., Ltd. integrates the production, R&D, sale and technical service of cemented carbide products. We mainly operate Jinxin brand, tire studs and carbide pin, is one of our main export products. Being assembled with the outer shell of tire studs, which can be fixed to the surfact if tire as a whole for antiskid effect.
