After years of development, we have successfully worked out the most effective techniques and been skilled at applying them to the manufacturing process.Its application scenarios have been expanded to Other Wheels,Tires and Accessories.
Applying the technology to the manufacturing process of the product turns out to be highly helpful. Featuring stability and durability, the product is suitable for the field(s) of Footwear Studs. Our range of Other Wheels,Tires and Accessories are made with the best ingredient. Zhuzhou Jinxin Studs Co., Ltd. have always advocated the customer-centric business concept, aiming to provide customers with specialized, standardized, and diversified services. We focus on technology development and hope to make some innovations backed by strong technical strength.
| Place of Origin: | China | name: | Flat winter studs for shoes |
| type: | ONE STEP/TWO STEPS/SEVERAL STEPS | apply for: | truck/racing/bus/van/lorry/vehicle/tractor car tyres |
| Dimension: | 6mm, 4mm, 6.5mm, 8mm, 9mm, 12mm, 15mm | Hight: | 5.5mm,5.7mm,6.5mm,9mm,10mm,11mm,12mm,13mm,14m,15mm,16mm,18mm |
| field: | climbing shoes/snow boots/aotomobile tyre/Vehicle tire | weather: | winter/snow/snowing/rainingfrozen/frost/freezing/ice/iced/icing |
| content 1: | Aluminium/Stainless steel/Zinc/Iron/copper/carbide/hard alloy/rubber | suitable car tyre: | bike/bicycle/motocycle/scooter/autobike/autocycle tyre, tires |
| color: | yellow, golden, Bronze, black, brown |
JX6.5-5.5-1 5.5mm hight Flat winter studs for tire with 6.5 mm diamter
Other details as below :
Main Decription
Specifications:
1.size: 8*8, 6*6
6.5-5.5-1, 6.5-6.5-1
8.0-10-1, 8.0-11-1, 8.0-12-1, 8.0-13-1
9-10,9-11,9-12,9-13,9-14
2. type: threaded ball studs, Flat studs
3. apply for: all kinds of cars, such as truck, racing car, general car, bicycle, alpenstock
advantages:
--good anti-slip effect
--super grip ability
--easily installed & removed
-- recycling use
-- sizes & types are available
--good wear resistance
--strict tolerance controlled
--100% virgin raw material
--zinc plated for rust protection
--directly factory sale with good price
--short and on time delivery
--all the specifications can be used in cars
--samples will be given upon the inquiry
Professional manufacture for snow studs, tyre studded scews, antiskid boots nails:
New type snow screw car tire studded pin, easy to install and remove without assembling tools. using in different season, after winter weather can take them off for next turning. Choosing the screw studs only to based on depth of your tire thread.
Product descripton:
Ordinary low-budget sheet metal screws bite fine into ice but get ground away quick on paved surfaces.
With sharp tips made of corrosion-proof, super hard, abrasion-resistant tungsten carbide, these ingeniously designed studs allow most of the tire’s rubber to be in contact with clear pavement while providing increased traction over mixed snow or ice. The best part is they’re simple to install — the studs self-tap with the included bit that fits any power drill. Just mark your tire, drill each one in and you’re ready to ride. For everyday winter riding, low profile studs (A, B or C) will keep you on the road. The off-road stud (D) is only for off-road / dirt riding. Scooter A & B are for scooters only.
For your reference:
GRADE | Co | Hc | Den | RS | HV30 | GRAIN SIZE |
JX019 | 7.5-9.0 | 11.0-14.0 | 12.68-12.78 | 50-90 | 1400-1600 | 1.2-1.6 |
JX021 | 8.2-10.0 | 10.0-12.0 | 12.10-12.20 | 50-90 | 1400-1600 | 1.6-2.0 |
JX025 | 9.0-11.0 | 10.2-11.2 | 12.77-12.87 | 87-97 | 1380-1480 | 1.6-2.0 |
2. studs pin
Content: WC, Co
Density (g/cm3):10.0-14.0
HAR:>1380 HV30
TRS (N/MM2):1660
Porosity (ISO):<A02B02
Free carbon and graphite phase: <C00
Metallurgical: A04B02C02E00
Grain size (um):1.2-2.0
Wear indicators: 71±7.5
Pin color: black
2. studs set
Material: Low carbon steel, Aluminum, stainless steel, rubber, Iron
surface processing: Zinc plated (no surface cracks, corrosion, and no separation of the zinc coating)
Set color: yellow, golden, green, black, bronze

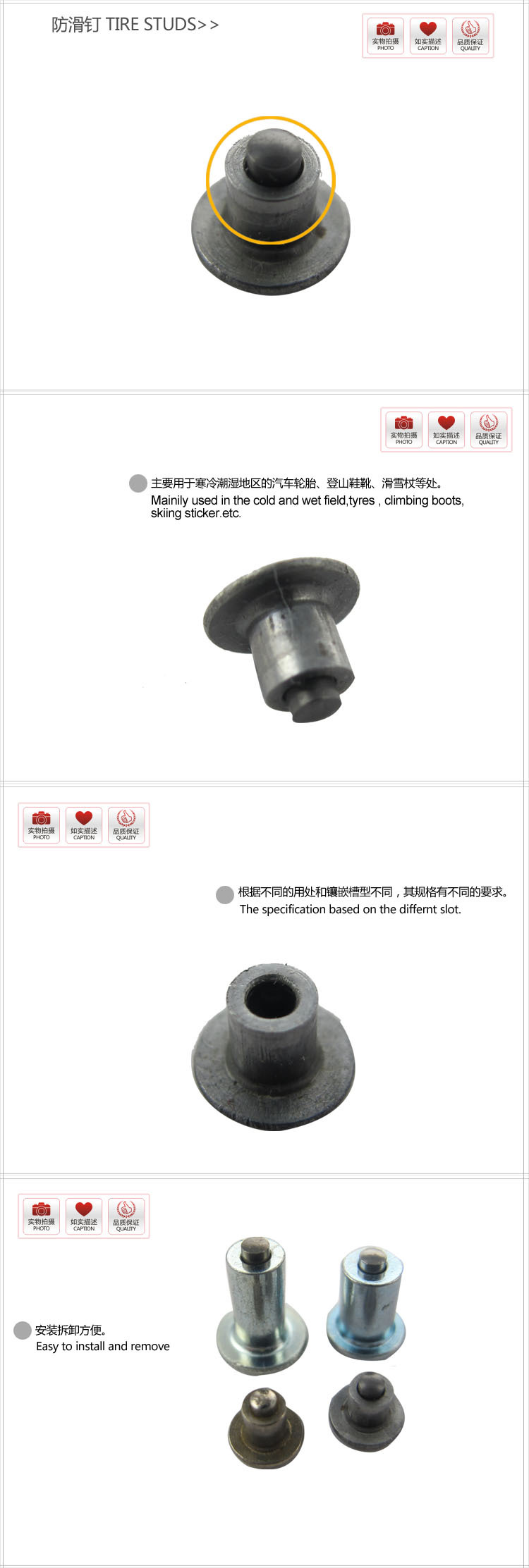

Here are real picture showing:
Installation Method
Application
Some hot sale model for your reference:
| screw studs | ||||
| moderl | S (mm) | H (mm) | D (mm) | d (mm) |
| JX4*4-H9 | 4 | 9 | 3.5 | 2.3 |
| JX4*4-H12 | 4 | 12 | 3.5 | 2.3 |
| JX6*6-H15 | 6 | 15 | 5.8 | 3.2 |
| JX6*6-H18 | 6 | 18 | 5.8 | 3.2 |
| JX6*6-H18R | 6 | 18 | 5.8 | 3.2 |
| JX6*6-H25 | 6 | 25 | 5.8 | 3.2 |
| model in red color means: do not have in stock now, need lead time if you want to order | ||||
| Flat head studs | ||||
| model | S (mm) | H (mm) | D (mm) | d (mm) |
| JX6.5-5.5-1 | 6.5 | 5.5 | 3.7 | 2 |
| JX6.5-5.7-1 | 6.5 | 5.7 | 3.7 | 2 |
| JX6.5-6.5-2 | 6.5 | 6.5 | 3.7 | 2 |
| JX8.0-10-1 | 8 | 10 | 5 | 2.3 |
| JX8.0-11-1 | 8 | 11 | 5 | 2.3 |
| JX8.0-12-1 | 8 | 12 | 5 | 2.3 |
| JX8.0-13-1 | 8 | 13 | 5 | 2.3 |
| JX9.0-10-1 | 9 | 10 | 5 | 2.3 |
| JX9.0-11-1 | 9 | 11 | 5 | 2.3 |
| JX9.0-12-1 | 9 | 12 | 5 | 2.3 |
| JX9.0-13-1 | 9 | 13 | 5 | 2.3 |
| JX9.0-14-1 | 9 | 14 | 5 | 2.3 |
| JX9.0-15-1 | 9 | 15 | 5 | 2.3 |
| JX9.0-16-1 | 9 | 16 | 5 | 2.3 |
| JX10-7-1 | 10 | 7 | 5 | 2.3 |
| JX12-14-1 | 12 | 14 | 7 | 3.2 |
| JX12-15-1 | 12 | 15 | 7 | 3.2 |
| JX12-16-1 | 12 | 16 | 7 | 3.2 |
| JX12-17-1 | 12 | 17 | 7 | 3.2 |
| JX8.0-10-2 | 8 | 10 | 6.4 | 2.3 |
| JX8.0-11-2 | 8 | 11 | 6.4 | 2.3 |
| JX8.0-12-2 | 8 | 12 | 6.4 | 2.3 |
| JX8.0-13-2 | 8 | 13 | 6.4 | 2.3 |
Packaging & Shipping
DHL/Fedex/UPS/EMS Express will be used to deliver this packages for sample. Large and heavy item will take Ocean transport.
1. We will send the goods within 7-15 business days after the full payment
has been confirmed and your will get a tracking number to follow the package;
2. We use anti-shock packing with inner protection and international shipping wooden case to ensure a brand new and fantastic projector on your hand;
3. Package normally arrives in 3-5 working days from our factory; By see, will depends.
4. When u receive the parcel, open and using immediately because we tested and detected each of them very clearly before shipping;
Company Information
About Jinxin:
Our Services
1.We provide quality promise worldwide for any part of the tungsten carbide products ( best equipment + accurate machine checking and test ).
2.We provide reparing service with low cost for any machine over the warranty period.
3.We provide 24 hours pre&after sail service for any customer,pls contact our email and
Aliwangwang to get the immediate response.
4.We provide OEM service for business channel or educational institution.
FAQ
1. Are you manufacturer?
A: Yes,we are. We have our own patent technology.
2. Do you accept OEM?
A: Yes and we are doing OEM for many famous brand in the market.
3. How long should I wait to get the machine after payment?
A: We will send out machines in no more than 5 days by courier.
If any question or others I can help, feel free to consult! I am here always for dear you : ))
Zhuzhou Jinxin Studs Co., Ltd. integrates the production, R&D, sale and technical service of cemented carbide products. We mainly operate Jinxin brand, tire studs and carbide pin, is one of our main export products. Being assembled with the outer shell of tire studs, which can be fixed to the surfact if tire as a whole for antiskid effect.
