Car and light truck studs
VR
  • Product Details

In the past months,Zhuzhou Jinxin Studs Co., Ltd. has been devoted to serious design and innovative development of the new product. It is officially called JX12-14-1 Snowmobile stud carbide snow tire studs for cars and releases to the market since today. JX12-14-1 Snowmobile stud carbide snow tire studs for cars provides not only excellent quality, but also very favorable price. Our expertise and technologies enable tailor-made solutions for every customer.

Place of Origin:Hunan, ChinaBrand Name:JINXIN
Diameter:11-15inchType:SOLID TIRE
Car Make:bike, motoTire Design:Radial
Model Number:JX12-15-1name:JX12-14-1 Snowmobile stud carbide snow tire studs for cars
type:ONE STEP/TWO STEPS/SEVERAL STEPSapply for:truck/racing/bus/van/lorry/vehicle/tractor car tyres
Dimension:6mm, 4mm, 6.5mm, 8mm, 9mm, 12mm, 15mmHight:5.5mm,5.7mm,6.5mm,9mm,10mm,11mm,12mm,13mm,14m,15mm,16mm,18mm


JX12-14-1 Snowmobile stud carbide snow tire studs for cars





Advantages:

 --good anti-slip effect

--super grip ability

--easily installed & removed

-- recycling use

-- sizes & types are available

--good wear resistance

--strict tolerance controlled

--100% virgin raw material

--zinc plated for rust protection

--directly factory sale with good price

--short and on time delivery

--all the specifications can be used in cars

--samples will be given upon the inquiry



Professional manufacture for snow studs, tyre studded scews, antiskid boots nails:

New type snow screw car tire studded pin, easy to install and remove without assembling tools. using in different season, after winter weather can take them off for next turning. Choosing the screw studs only to based on depth of your tire thread.





For your reference:

GRADE

Co

Hc

Den

RS

HV30

GRAIN SIZE

JX019

7.5-9.0

11.0-14.0

12.68-12.78

50-90

1400-1600

1.2-1.6

JX021

8.2-10.0

10.0-12.0

12.10-12.20

50-90

1400-1600

1.6-2.0

JX025

9.0-11.0

10.2-11.2

12.77-12.87

87-97

1380-1480

1.6-2.0



2. studs pin

Content: WC, Co
Density (g/cm3):10.0-14.0
HAR:>1380 HV30
TRS (N/MM2):1660
Porosity (ISO):<A02B02
Free carbon and graphite phase: <C00
Metallurgical: A04B02C02E00
Grain size (um):1.2-2.0
Wear indicators: 71±7.5
Pin color: black



2. studs set

Material: Low carbon steel, Aluminum, stainless steel, rubber, Iron
surface processing:  Zinc plated  (no surface cracks, corrosion, and no separation of the zinc coating)

Set color: yellow, golden, green, black, bronze



Some hot sale model for your reference:



screw studs
moderlS (mm)H (mm)D (mm)d (mm)
JX4*4-H9493.52.3
JX4*4-H124123.52.3
JX6*6-H156155.83.2
JX6*6-H186185.83.2
JX6*6-H18R6185.83.2
JX6*6-H256255.83.2
model in red color means: do not have in stock now, need lead time if you want to order
Flat head studs
modelS (mm)H (mm)D (mm)d (mm)
JX6.5-5.5-16.55.53.72
JX6.5-5.7-16.55.73.72
JX6.5-6.5-26.56.53.72
JX8.0-10-181052.3
JX8.0-11-181152.3
JX8.0-12-181252.3
JX8.0-13-181352.3
JX9.0-10-191052.3
JX9.0-11-191152.3
JX9.0-12-191252.3
JX9.0-13-191352.3
JX9.0-14-191452.3
JX9.0-15-191552.3
JX9.0-16-191652.3
JX10-7-110752.3
JX12-14-1121473.2
JX12-15-1121573.2
JX12-16-1121673.2
JX12-17-1121773.2
JX8.0-10-28106.42.3
JX8.0-11-28116.42.3
JX8.0-12-28126.42.3
JX8.0-13-28136.42.3





Here are some real product images:

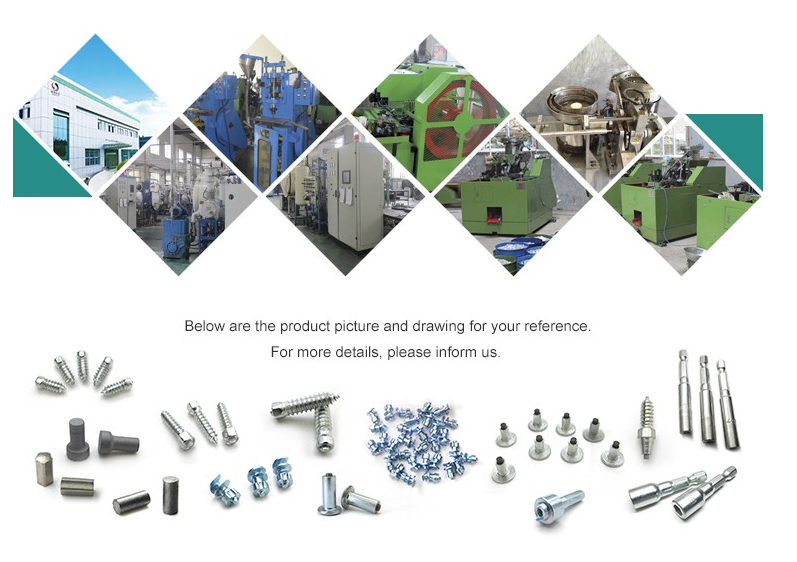

We also deal with other carbide studs as bellow:



Application

Packaging & Shipping

DHL/Fedex/UPS/EMS Express will be used to deliver this packages for sample. Large and heavy item will take Ocean transport.

1. We will send the goods within 7-15 business days after the full payment
has been confirmed and your will get a tracking number to follow the package;
2. We use anti-shock packing with inner protection and international shipping wooden case to ensure a brand new and fantastic projector on your hand;
3. Package normally arrives in 3-5 working days from our factory; By see, will depends.
4. When u receive the parcel, open and using immediately because we tested and detected each of them very clearly before shipping;

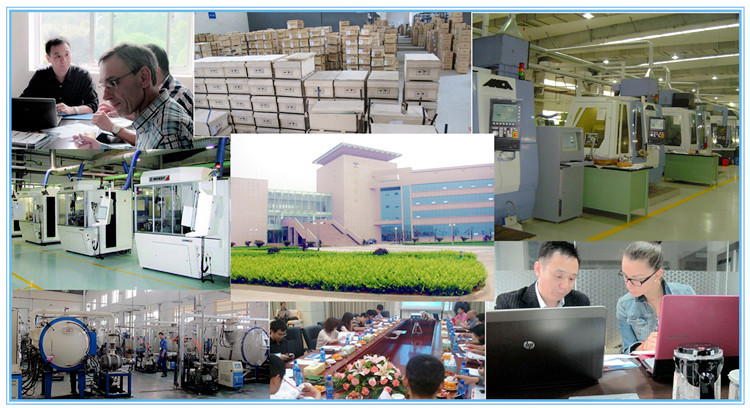

Company Information





Our Services

1.We provide quality promise worldwide for any part of the tungsten carbide products ( best equipment + accurate machine checking and test ).

2.We provide reparing service with low cost for any machine over the warranty period.
3.We provide 24 hours pre&after sail service for any customer,pls contact our email and
Aliwangwang to get the immediate response.
4.We provide OEM service for business channel or educational institution.



FAQ

1. Are you manufacturer?

A: Yes,we are. We have our own patent technology.
2. Do you accept OEM?
A: Yes and we are doing OEM for many famous brand in the market.

3. How long should I wait to get the machine after payment?
A: We will send out machines in no more than 5 days by courier.





If any question or others I can help, feel free to consult! I am here always for dear you :



Gisselle Gan

Mobile:0086-15873358163

Whats up No.+86 15873358163

Skype: jxcarbidewendy

Add.: No.28 Xinhua Road, Zhuzhou City, Hunan Province, China

Fax: 0086-0731-22332243
