Ice Racing Tire Studs
  • Product Details

Zhuzhou Jinxin Studs Co., Ltd. through years of painstaking research, relying on mature R&D technology and precise market positioning, we have created JX1911 Winter Screw Tractors Tire studs. The product is widely used to tackle the problems arising in the field(s) of Other Wheels,Tires and Accessories. Our JX1911 Winter Screw Tractors Tire studs has been through multiple tests conducted by professional technicians, the purpose of which is to confirm its practical use. When applied in the application area(s) of Other Wheels,Tires and Accessories, the auto parts, auto screws, auto cleats, fasteners, hardware tools can be reliable and long-lasting, saving plenty cost for users.

Place of Origin:Chinamaterial:tungsten carbide+steel body
name:JX1911 Winter Screw Tractors Tire studskeywords:tire spike
function:antiskid/antislipping/ice grippingadvantage:long service life/recycle using/easy to install or remove
Certificate:ISO9001:2015application:ice racing car/motorcycle/snowmobile/truck/lorry/bus/Jeep/SUV
Brand:JinxinColor:silver /black /golden or as your request

JX1911 Winter Screw Tractors Tire studs

JX1911 Technical lnformation: Application: Medium Loaders, Tractors, Graders Dimensions: 11 x 22.8mm Prominence(from tire or treadsurface): 5.3 mm Stud Penetration(into tire or tread surface): 17.5 mm Minimum Tread Depth: 14.5 mm Carbide Tip Width: 3.5 mm

Jinxin Tire Studs Advange: 1.Popular used in Europe , America , Canada and long winter areas 2.Material: carbon steel body +carbide pin 3.Professional supplier 4.ISO standard 5.This new type screw tire studs can be easily installed and removed without professional tools. When it's not in winter, it can also be disassembled from the tire. And you can store these screw tire studs for using again in next season.Jinxin Tire Studs Installation: 1. Drill (using a very small bit) down from the center of chosen knob into the tire. 2. Drill a screw up from inside to out. If the angle isn't perpendicular to the tire, it will stick out one side or the other. 3. Do one hole and screw at a time. Put duct tape over the screws on the inside of the tire. Sometimes it is best to use two layers of tape. Jinxin Company Note: 1.Please allow +/-0.5mm error due to manual measurement. pls make sure you do not mind before you did 2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! 3.About Package,the number of products may be greater or less than the actually pieces, rather than the exact number, within 2 pieces. 4. It is easy to install, but professional installation is highly recommended.

Product Images

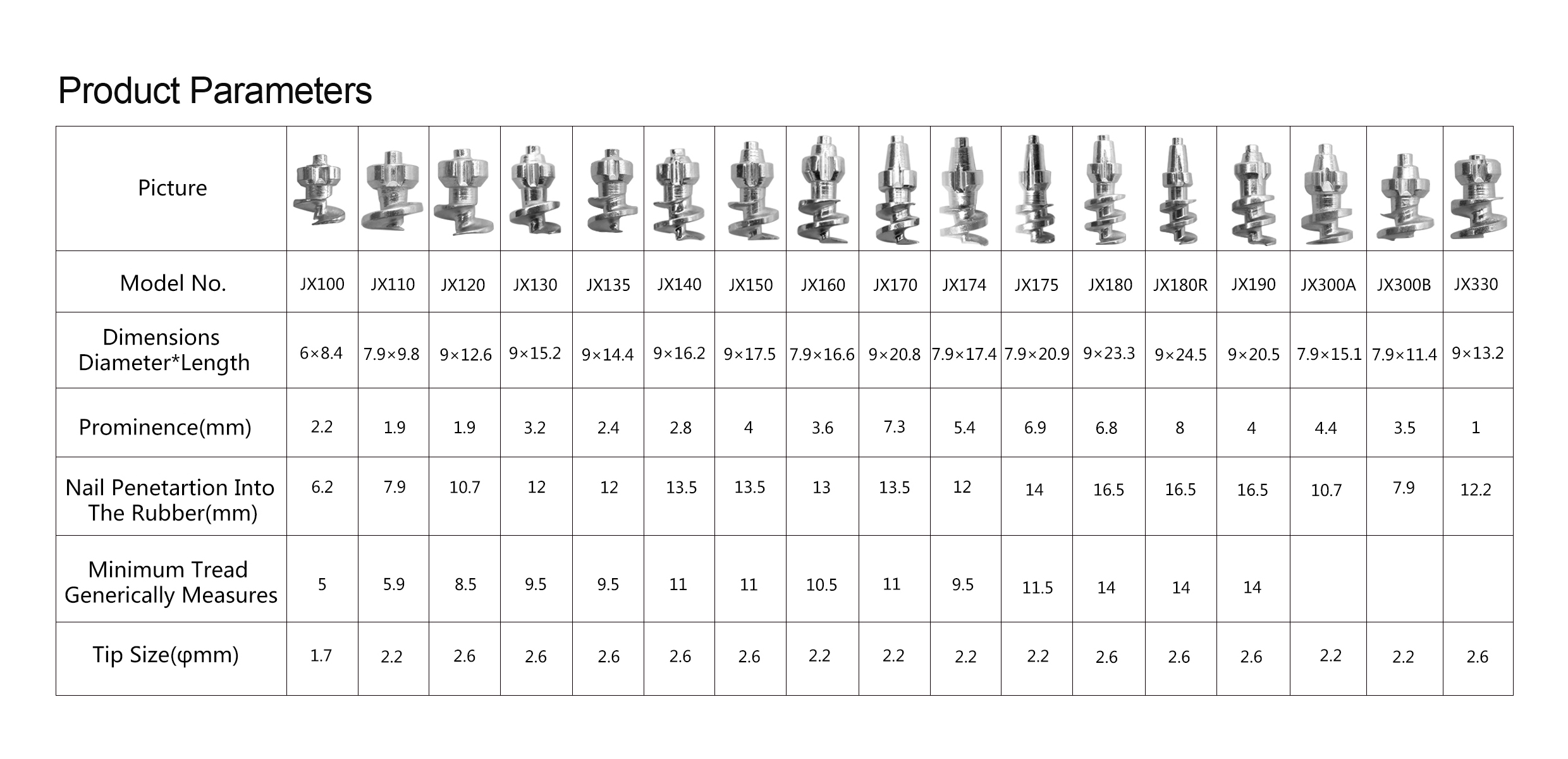

Product Paramenters

Installation Method


Basic Information
  • Year Established
  • Business Type
  • Country / Region
  • Main Industry
  • Main Products
  • Enterprise Legal Person
  • Total Employees
  • Annual Output Value
  • Export Market
  • Cooperated Customers


Send your inquiry

Contact Us
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.

Zhuzhou Jinxin Studs Co., Ltd. integrates the production, R&D, sale and technical service of cemented carbide products. We mainly operate Jinxin brand, tire studs and carbide pin, is one of our main export products. Being assembled with the outer shell of tire studs, which can be fixed to the surfact if tire as a whole for antiskid effect.

They are all manufactured according to the strictest international standards. Our products have received favor from both domestic and foreign markets.
They are now widely exporting to 200 countries.
